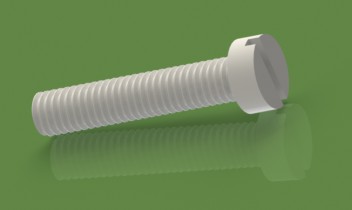

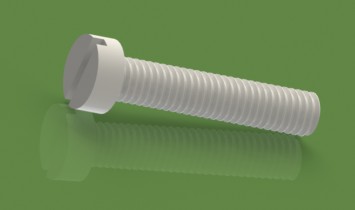

[推荐]Slotted cheese Head Screws-DIN

Slotted cheese Head Screws-DIN

Product Price:面议/电议

Product Material:PA66/PP/PPS/PVDF/PC/PA+GF/PP+GF

Product Color:Natural Color

Product Features:综合性能优良,机械强度高,耐磨性高,耐腐蚀,绝缘性良好,无磁性,阻燃,重量轻等.

Product Explain:其他材料、规格、颜色可根据客户要求制作。

ProductSite:Screws

The number of attention:Since the 2011-07-07 Share Passengers








Product  Coding

A

H

T(≥)

J

M3

5.4-5.5

1.9-2.0

0.85

1

M4

6.78-7.0

2.46-2.6

1.1

1.51

M5

8.28-8.5

3.12-3.3

1.3

1.51

M6

9.78-10.0

3.6-3.9

1.6

1.91

M8

12.73-13.0

4.7-5.0

2

2.31

M10

15.73-16.0

5.9-6.0

2.4

2.81

M12

18.73-19.0

7.8-8.0

3.6

3.01



Product coding

Specifications



Product coding

Specifications

B0000D030050005

M3 ×0.5× 5mm

B0000D080125010

M8 ×1.25×10mm

B0000D030050006

M3 ×0.5× 6mm

B0000D080125016

M8 ×1.25×16mm

B0000D030050008

M3 ×0.5× 8mm

B0000D080125020

M8 ×1.25×20mm

B0000D030050010

M3 ×0.5×10mm

B0000D080125025

M8 ×1.25×25mm

B0000D030050012

M3 ×0.5×12mm

B0000D080125030

M8 ×1.25×30mm

B0000D030050016

M3 ×0.5×16mm

B0000D080125035

M8 ×1.25×35mm

B0000D030050020

M3 ×0.5×20mm

B0000D080125040

M8 ×1.25×40mm

B0000D030050025

M3 ×0.5×25mm

B0000D080125050

M8 ×1.25×50mm



B0000D080125060

M8 ×1.25×60mm

B0000D040070006

M4 ×0.7× 6mm



B0000D040070008

M4 ×0.7× 8mm

B0000D100150012

M10×1.5×12mm

B0000D040070010

M4 ×0.7×10mm

B0000D100150016

M10×1.5×16mm

B0000D040070012

M4 ×0.7×12mm

B0000D100150020

M10×1.5×20mm

B0000D040070016

M4 ×0.7×16mm

B0000D100150025

M10×1.5×25mm

B0000D040070020

M4 ×0.7×20mm

B0000D100150030

M10×1.5×30mm

B0000D040070025

M4 ×0.7×25mm

B0000D100150035

M10×1.5×35mm

B0000D040070030

M4 ×0.7×30mm

B0000D100150040

M10×1.5×40mm

B0000D040070035

M4 ×0.7×35mm

B0000D100150050

M10×1.5×50mm

B0000D040070040

M4 ×0.7×40mm

B0000D100150060

M10×1.5×60mm





B0000D050080006

M5 ×0.8× 6mm

B0000D120175016

M12×1.75×16mm

B0000D050080008

M5 ×0.8× 8mm

B0000D120175020

M12×1.75×20mm

B0000D050080010

M5 ×0.8×10mm

B0000D120175025

M12×1.75×25mm

B0000D050080012

M5 ×0.8×12mm

B0000D120175030

M12×1.75×30mm

B0000D050080015

M5 ×0.8×15mm

B0000D120175035

M12×1.75×35mm

B0000D050080016

M5 ×0.8×16mm

B0000D120175040

M12×1.75×40mm

B0000D050080020

M5 ×0.8×20mm

B0000D120175050

M12×1.75×50mm

B0000D050080025

M5 ×0.8×25mm

B0000D120175060

M12×1.75×60mm

B0000D050080030

M5 ×0.8×30mm











B0000D060100008

M6 ×1.0× 8mm





B0000D060100010

M6 ×1.0×10mm





B0000D060100012

M6 ×1.0×12mm





B0000D060100016

M6 ×1.0×16mm







B0000D060100020

M6 ×1.0×20mm







B0000D060100025

M6 ×1.0×25mm







B0000D060100030

M6 ×1.0×30mm







B0000D060100035

M6 ×1.0×35mm







B0000D060100040

M6 ×1.0×40mm







B0000D060100045

M6 ×1.0×45mm







B0000D060100050

M6 ×1.0×50mm







B0000D060100055

M6 ×1.0×55mm







B0000D060100060

M6 ×1.0×60mm
